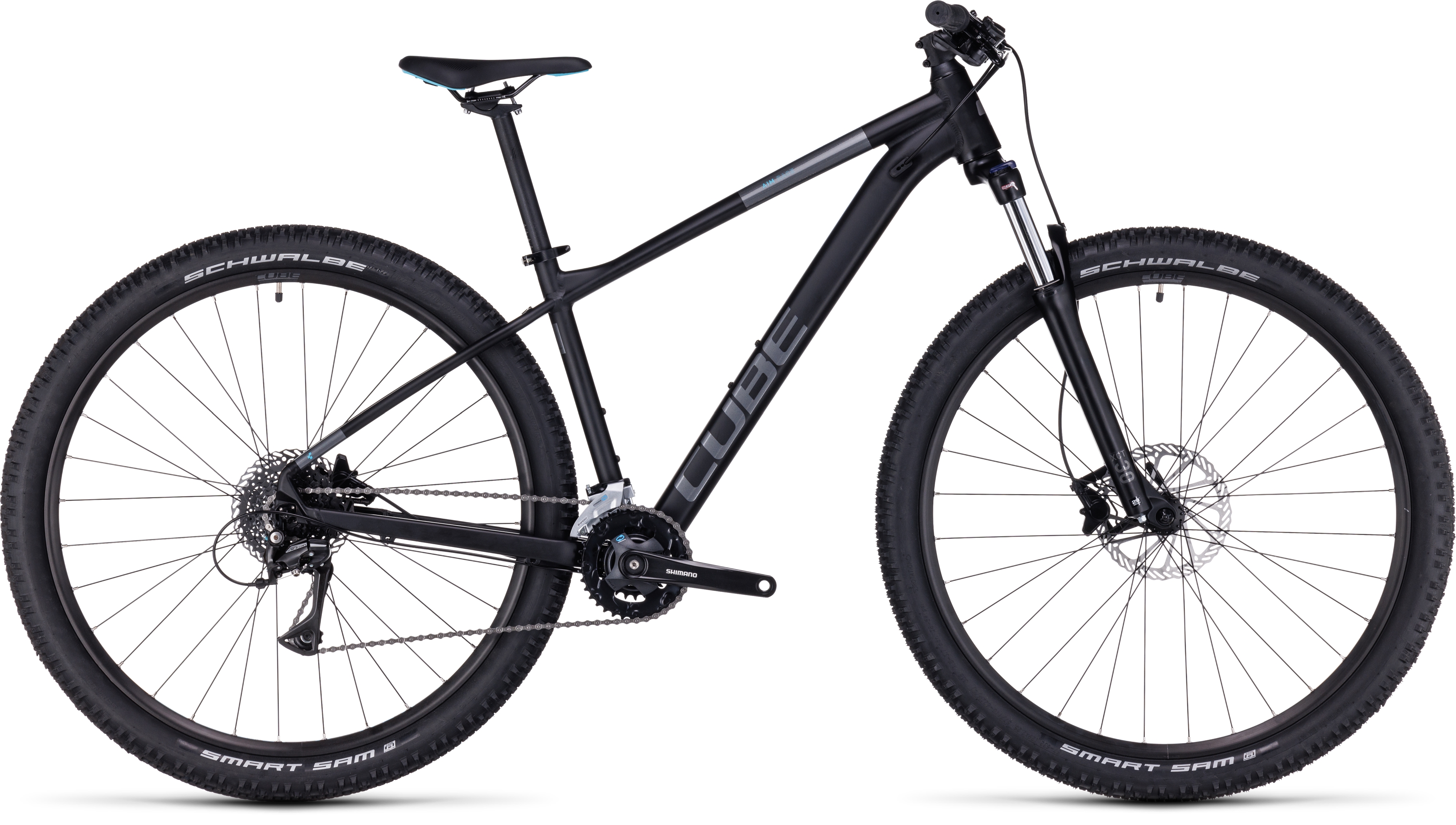

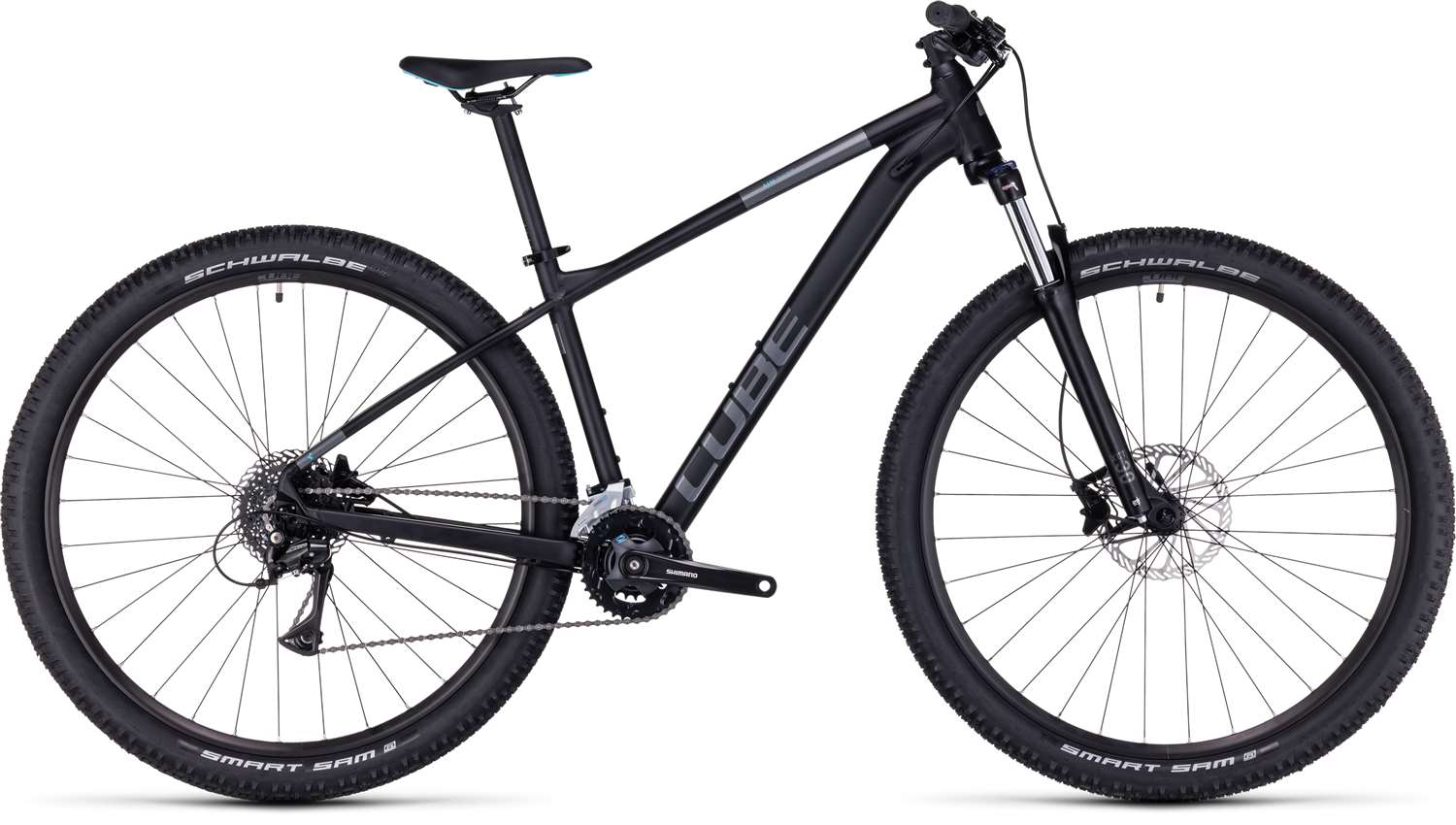

aim race

TELAIO

Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount

MISURA

Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24")

FORCELLA AMMORTIZZATA

SR Suntour XCT Disc, 100mm, Lockout

FRENI

Clarks Clout 1, Hydr. Disc Brake PM/FM (180/160)

CAMBIO

Shimano RD-M3020, 8-Speed

DERAGLIATORE

Shimano FD-M315, Top Swing, 31.8mm Clamp

COMANDI CAMBIO

Shimano SL-M315, Rapidfire-Plus

MOVIMENTO CENTRALE

Thun Paso-ML, 73mm BSA

GUARNITURA

Shimano FC-M315, 36x22T, 170mm

PACCO PIGNONI

Shimano CS-HG31, 11-34T

CATENA

KMC Z8.3

MANUBRIO

CUBE Rise Trail Bar, 680mm

ATTACCO MANUBRIO

CUBE Peformance Stem Race, 31.8mm

MANOPOLE

ACID React

SERIE STERZO

CUBE FPH868, Semi-Integrated

MOZZO ANTERIORE

Shimano HB-TX505, QR, Centerlock

MOZZO POSTERIORE

Shimano FH-TX505, QR, Centerlock

CERCHI

CUBE ZX20, 32H, Disc

COPERTONI

Schwalbe Smart Sam, Active, 2.25

REGGISELLA

CUBE Performance Post, 27.2mm

SELLA

Natural Fit Venec Lite

PEDALI

ACID PP MTB

PESO

14,3 kg
